M-TEC POWDER – Partner for The European Metal Powder Market
M-tec powder GmbH is a part of the group m-tec. The group, with head-office in Töging am Inn and production facilities in Voerde, Germany. M-Tec Powder team is well experienced on metal powder production and application. M-tec powder provide solutions for iron & steel, defense, refractory, chemicals, automotive, foundry, etc. with stable product quality and well experienced team. Please see below main products and application areas;
Aluminum granules, flakes and powders;
Molten Aluminum is dissipated by high pressure gases using a variety of proprietary atomizing nozzles. The liquid metal solidifies into particles which are collected and separated into the desired particle size distribution. We can tailor our Aluminum powders to meet the most stringent chemistry, particle size and particle shape customer specifications.
With our state-of-the-art atomizing technology and powder processing capabilities such as screening, classifying, blending and coating, developed with more than 40 years of experience, we ensure the highest standards of safety, reliability and product quality
REMARKS: Aluminum powder production only air or gas atomization are used powders from the primary cyclones are further processed via sieving, classification, passivating and blending ultrafine aluminum powders are separated by secondary cyclones or classifier.
M-Tec Powder able to produce sizes from 1600 µm to 15 mm according to Customer requirements.
Production Capacity
| 2018 | 2019 | 2020 | |
| Secondary Al-powder | 1800 MT | 3600 MT | 4200 MT |
| Secondary Al-Powder
(mechanically processed) |
300 MT | 450 MT | 600 MT |
| Primary Al-Powders | 1800 MT | 3600 MT | 5400 MT |
Magnesium powders, chips and granules;
Production by machining. Solid metal ingots are mechanically processed by grinding or scratching, milling and sieving (or atomizing)
STEELMAKING &REFINING
Sıvı Ham Demir Kükürt Giderme
M-tec Powder provides solutions for hot metal desulphurization for integrated steel plants. Seratime Magnesium blends prepared according to Customer specifications and requirements. Desulphurization blends contain Mg97, Mg95, Mg90, Mg66 etc. with cryolite or without cryolite.
Steel Desulphurization at LMF

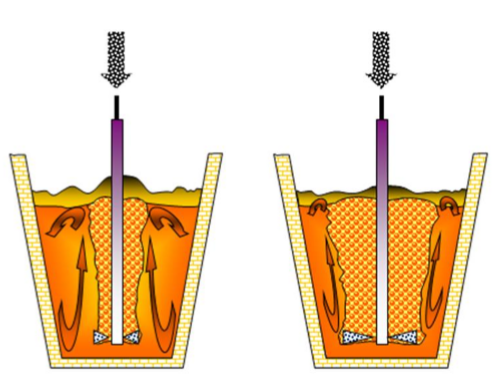

M-tec Powder provides solutions for steel desulphurization in steel plants. Seratime Fluid lime injected in to ladle through lance and provides a solution for desulphurization.
Synthetic Slags,
M-Tec Powder are able to create solution for steel refining at VD-VOD and LMF with synthetic slag. M-Tec powder synthetic slags have a wide range of chemical specification. Synthetic slags create desired slag viscosity and composition to keep inclusions inside and provide clean steel for your customer. You can find range of META products as below.
| META | CaO % | Al2O3 % | Al meatllic % | SiO2 % | MgO % | Fe2O3 % | TiO2 % | CaF2 % | Na2O+K2O % | H2O (120 0C) % | L.O.I. % | Grain Size (mm) |
Bulk Density (kg/dm3) |
Melting Point (C) |
| META 3000 | 54 | max. 2 | – | 6,5 | 36 | 0,5 | – | – | max. 0,5 | max. 0,5 | max. 2 | 0-2 | 1,0 | – |
| META 3001 | 41-43 | 16-18 | – | 22-24 | 12-14 | max. 3 | – | – | max. 2 | max. 0,8 | 1-3 | 0,4 | 0,95 | 1400 +/- 30 |
| META 4001 | min. 64 | 13-23 | – | max. 1,6 | 8-18 | – | max. 0,8 | 0 | – | max. 0,5 | – | 0-10 | – | – |
| META 4002 | min. 50 | 25-35 | – | max. 3,0 | 8-14 | – | max. 0,25 | 0 | – | max. 0,5 | – | 0-10 | – | – |
| META 4003 | 32-56 | 19-29 | – | 25-35 | 4-9 | – | max. 0,1 | – | – | – | – | 0-9 | – | – |
| META 4005 | 50-60 | 5-15 | – | max. 2,0 | 10-18 | – | – | – | – | – | – | 0-10 | – | – |
| META 4007 | min. 64 | 13-23 | – | max. 1,6 | 8-14 | – | max. 0,8 | 0 | – | – | – | 0-10 | – | – |
| META 4009 | 67-70 | 14,5-16 | – | max. 1,5 | 10-12 | max. 1,5 | max. 0,3 | max. 0,10 | – | – | – | 0-8 | – | – |
| META 4011 | 61-63 | 18-30 | 2,5-3,5 | max. 2,5 | – | max. 1,5 | max. 0,1 | – | max. 0,80 | – | – | 0-10 | – | – |
| META 4020 | 15-21 | 70-78 | – | max. 1,0 | 1,5-2,0 | – | max. 0,05 | – | – | – | – | 0-8 | – | – |
| META 5000 | 45 | 45 | – | 5 | 1.Oca | 2 | 1,5 | – | – | – | – | 0-10 | – | 1400 |
| META 5001 | 45 | 45 | – | 2 | 1 | 0,5 | 0,05 | – | – | – | – | 0-10 | – | 1400 |
FOUNDRY INDUSTRY
M-Tec Powder uses great experience in Foundry Industry. M-Tec Powder can provide products for inoculants, nodulizer alloying etc. High purity Mg cored wire available in our product range. Please see product list for more detail.
AERATED CONCRATE
M-Tec Powder provides supply services to aerated concrete industry with aluminum flakes, granules and pasta products used in the production of aerated concrete.
| PRODUCT LIST | |
| MagnesIum GranuleS | Steel Making |
| SynthetIc Slag | Steel Making |
| Mg Ingot & Flake | Foundry, Defense |
| NI-Mg | Foundry |
| Al-Mg | Foundry |
| Ca-Mg | Foundry |
| AlSIMg | Foundry |
| CaSI | Steelmaking, Cored Wire |
| FeSIMG | Foundry |
| FeSi | Steelmaking, Foundry |
| Ca | Foundry, Steelmaking |
| Sİ GranulES, POWDER | Refractory |
| Mn Flakes | Steelmaking, Alloying |
| Calciumcyanamid (CaCn2) | Steelmaking |
| Az91, Az31, Am50, Am60 | Foundry |
| Mg Cored WIre | Foundry |
| AlumunIum Powder&Flakes | Cement, Refractory, Defense |
